Patient doors are the cornerstone of the healthcare environment and are carefully designed to prioritize patient comfort, safety and privacy. Our patient room doors feature durable materials and precision design to provide reliability and tranquility to the treatment space. With smooth operation and optional privacy features, this product from modular ot company creates a calming atmosphere conducive to recovery. Our patient room doors are designed to meet stringent healthcare standards, ensuring regulatory compliance while enhancing the overall patient experience. Trust our patient room doors to provide safe, welcoming entrances for patients, caregivers and visitors in healthcare facilities.

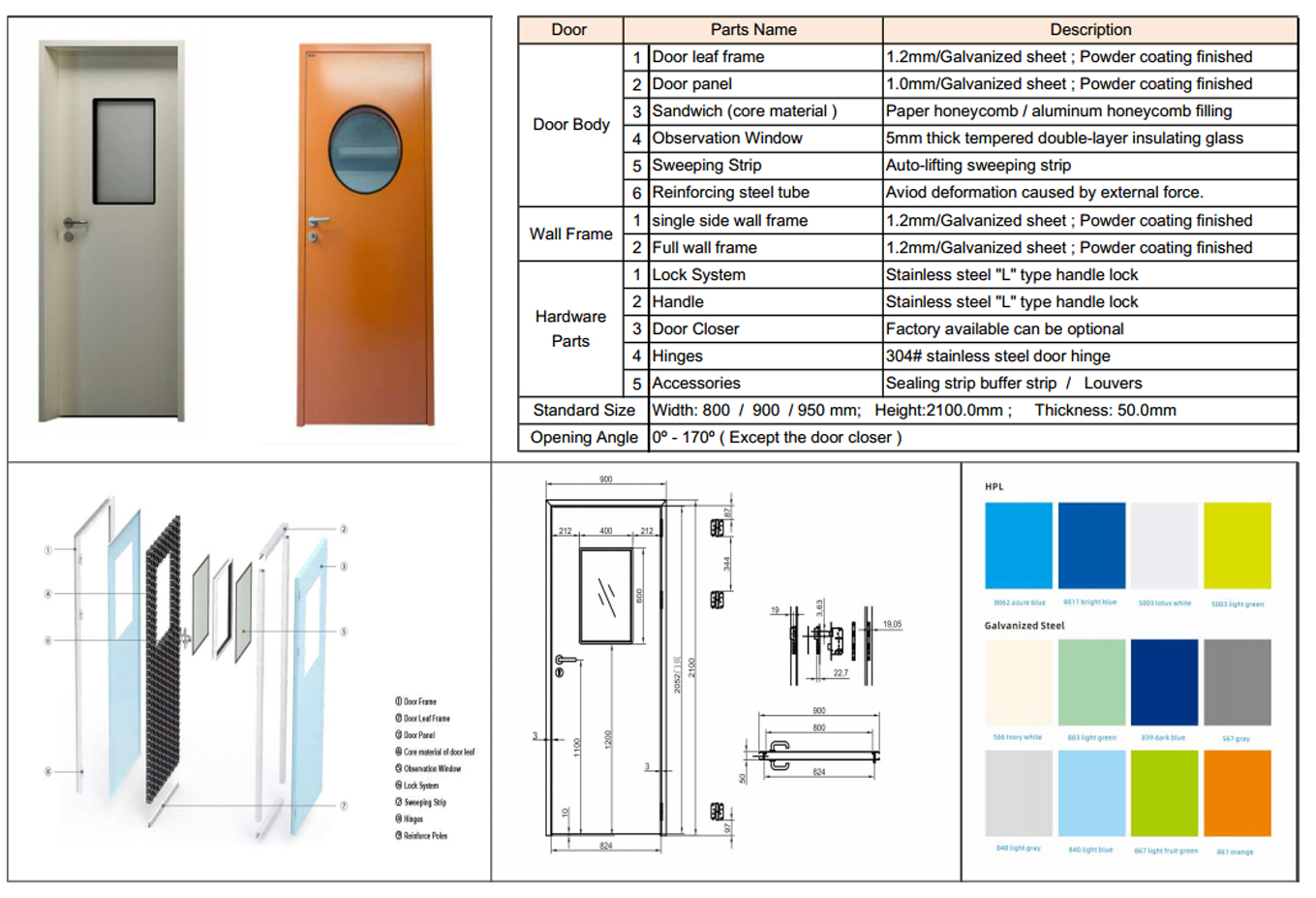

| Product Information | |

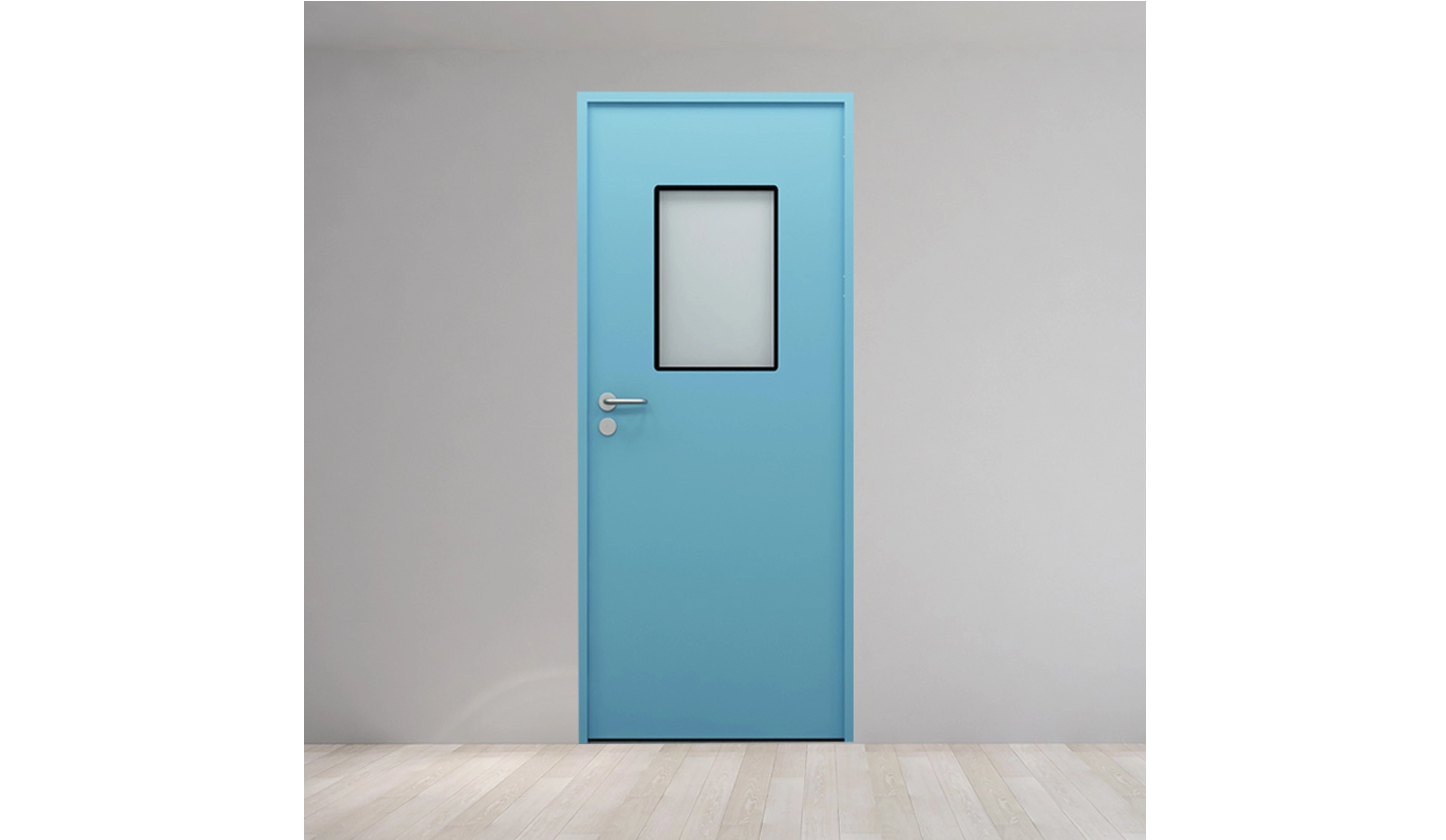

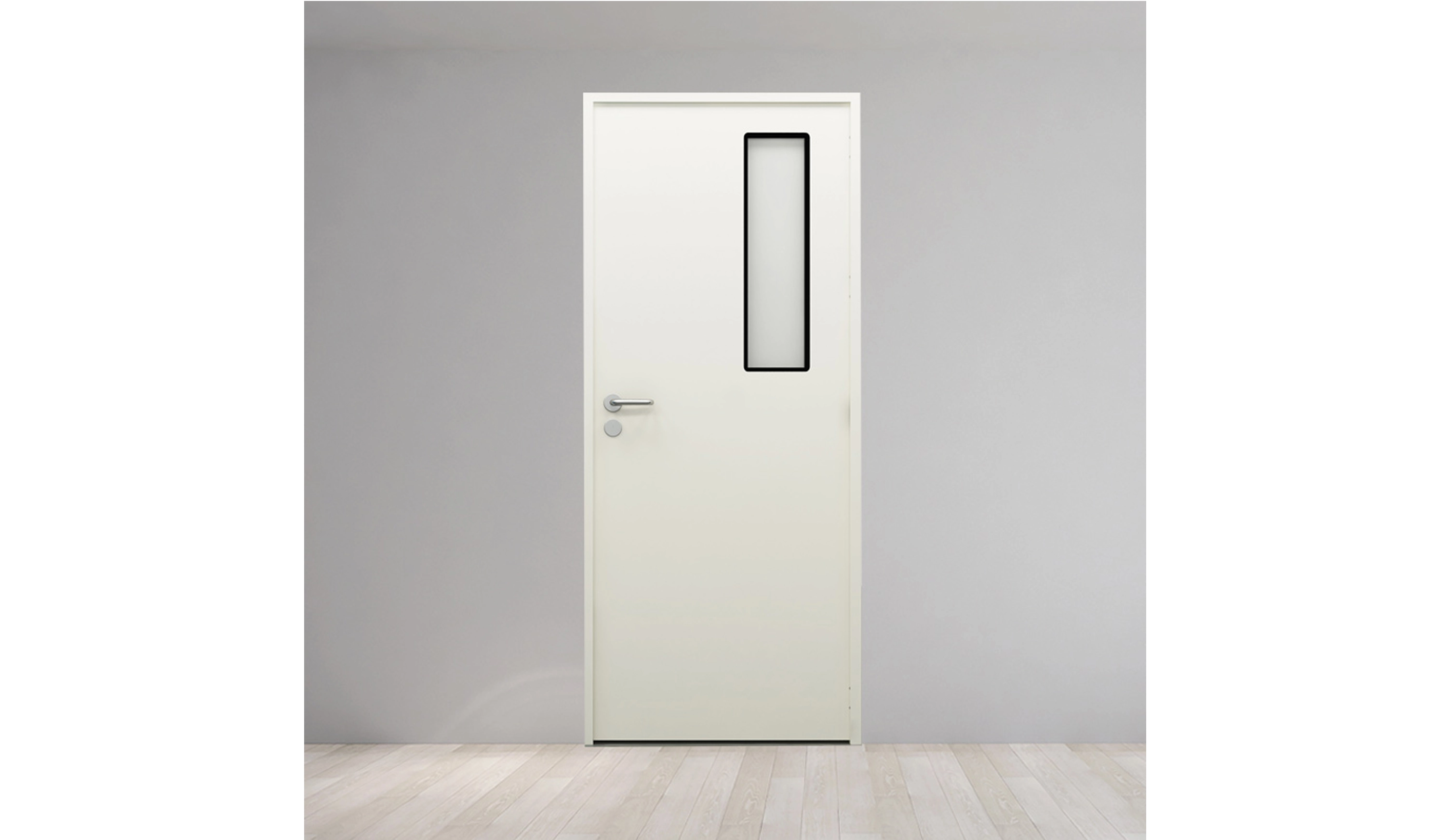

| Product Name | Patient Room Door |
| Door Panel Material | Galvanized Steel/ Stainless Steel/ Aluminium Compact Laminate/ HPL |
| Sandwich Material | Paper / Aluminum Honeycomb |
| Door Frame Material | Stainless Steel/ Alumnium |
| Window | 5mm Double-layer Laminated Tempered Glass |
| Door Height | 2100mm-2500mm customized |
| Door Width | 800-1800mm customized |
| Technical Data | |

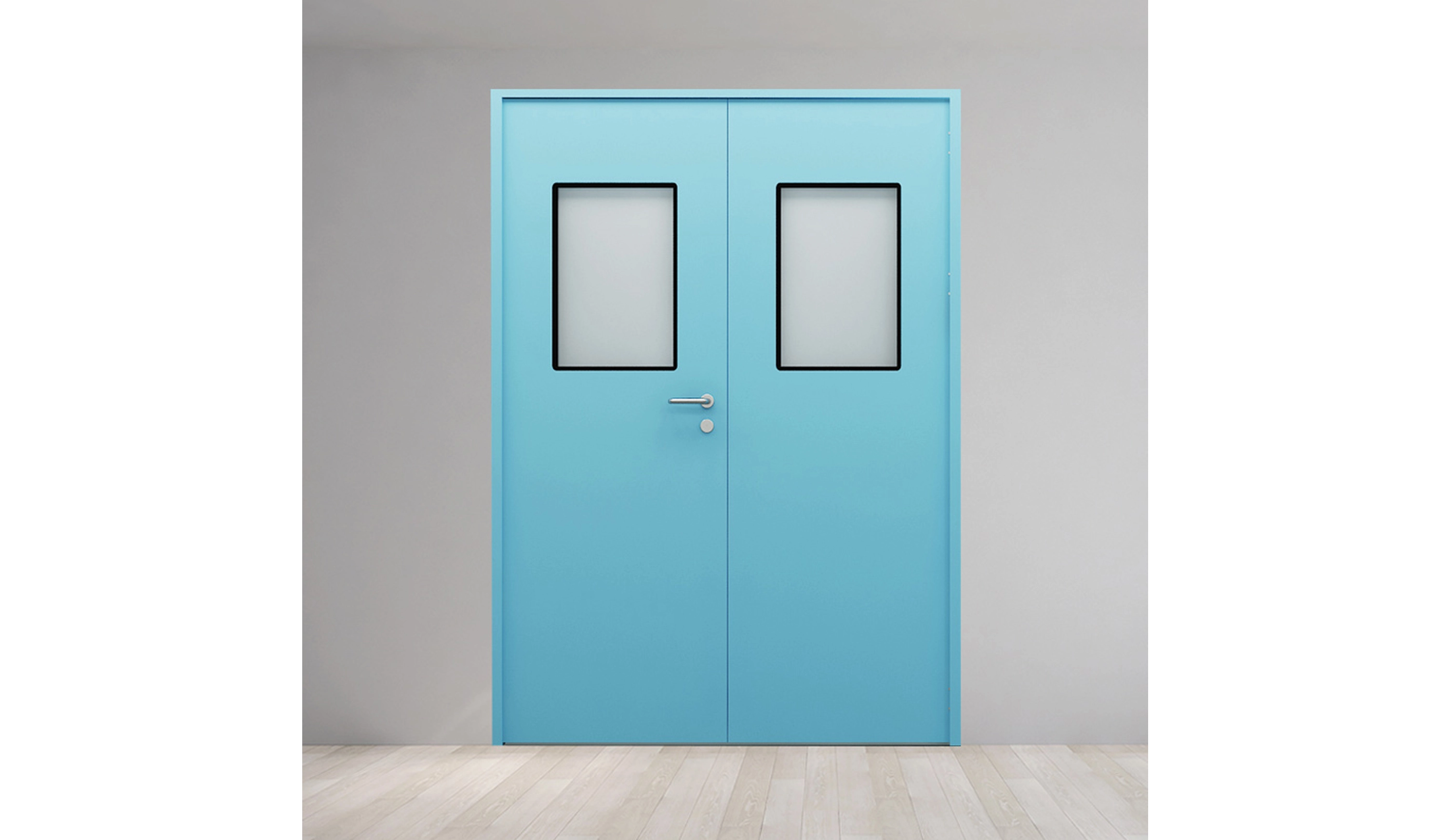

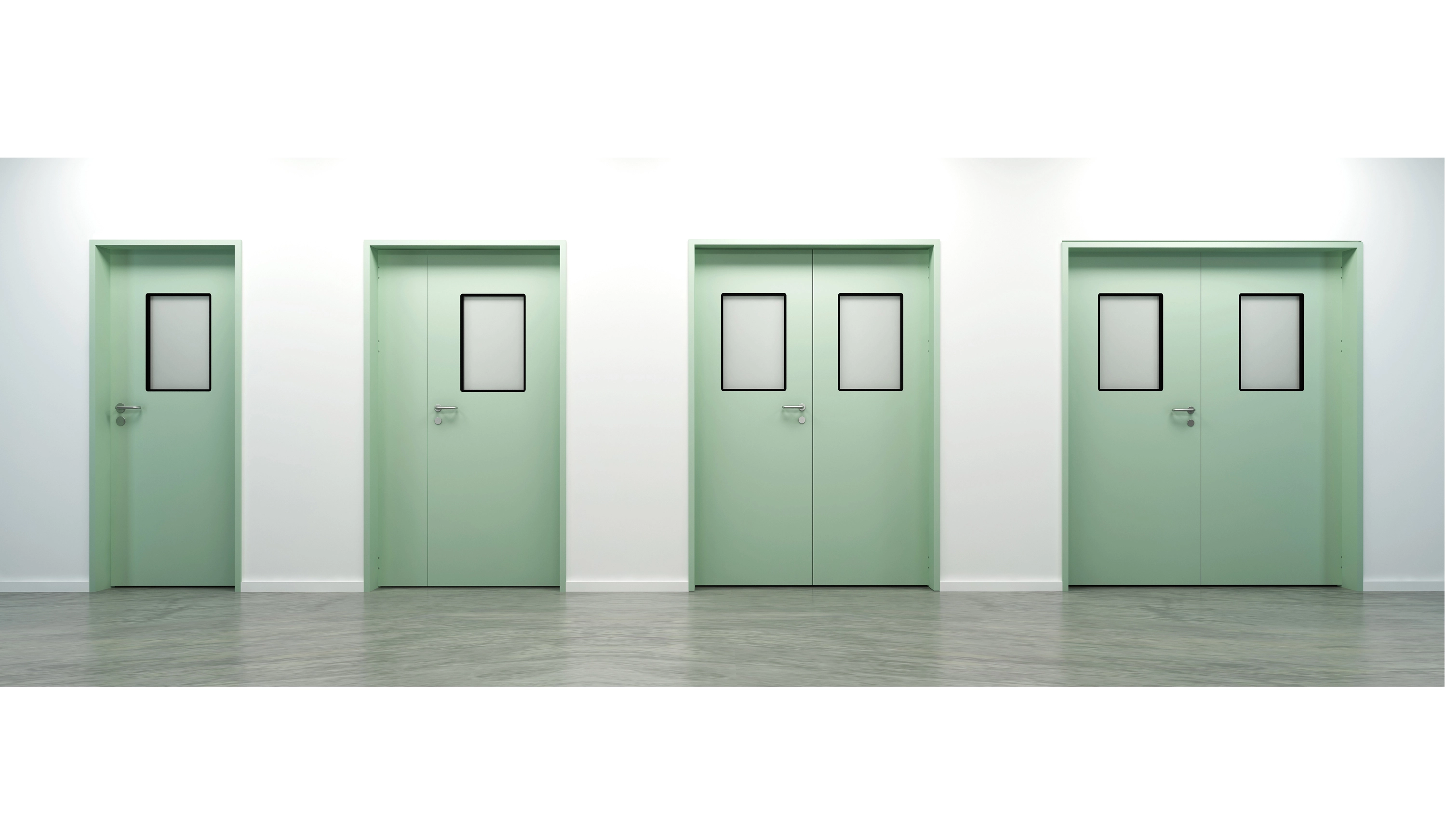

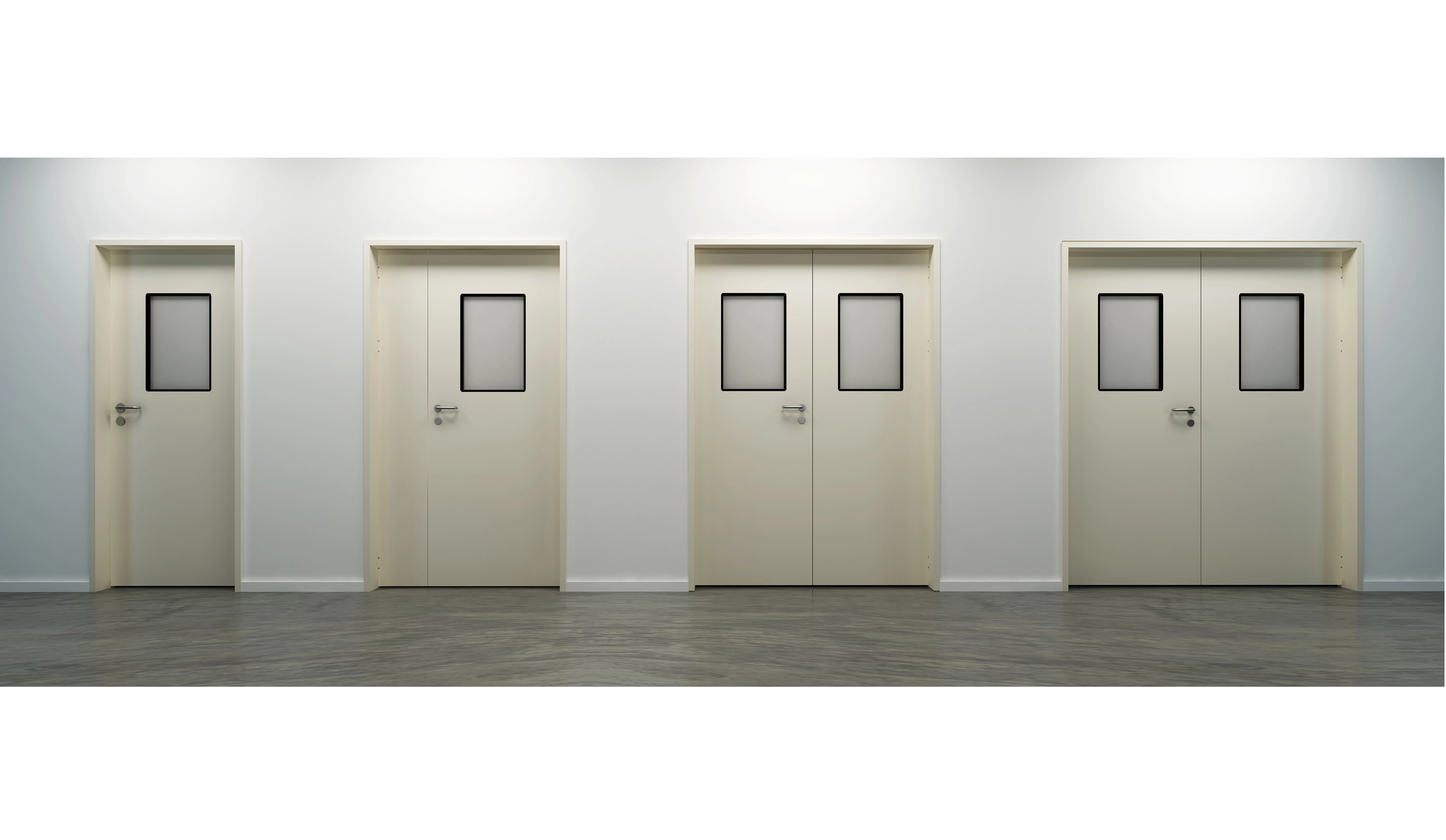

| Door Configuration | Single-leaf/ Double-leaf |
| Max Weight | 50KG |
| Opening Angle | 0-170degrees |
| Door Lock | L Shape |
| Seal | Rubber tape |
| Opening Type | Swing or Automatic |
| Package | Caron/ Wooden Box |
| Surface Treatment | Paint Baking, Electrostatic spraying |
| Standard Sizes by Region | |||
|---|---|---|---|
| Region | Width | Height | Notes |
| United States | 42" (1067 mm) Minimum 48" (1219 mm) Preferred | 80"–84" (2032–2134 mm) | ADA compliant; 42" min for single doors |
| Canada | 42" (1067 mm) Minimum | 80" (2032 mm) | National Building Code |
| Europe (EN) | 1050 mm (41.3") Minimum | 2100 mm (82.7") | EN 15284 standard |
| Australia | 1100 mm (43.3") | 2040 mm (80.3") | AS 1428.1 accessibility |
| China | 900 mm (35.4") Minimum for single 1100–1200 mm (43.3"–47.2") Sub-mother door preferred 1300 mm (51.2") For gurney clearance | 2100 mm (82.7") Standard (+300–500 mm with vision panel) | GB/T 41659-2022; Sub-mother doors common for patient rooms to accommodate beds; widths ensure 900 mm clear opening |
Key Requirements
Clear Opening Width
Minimum: 32" (815 mm) after accounting for door hardware
Recommended: 36" (915 mm) for gurney clearance
ICU/CCU: Often 54" (1372 mm) double doors
| Door Types | ||
|---|---|---|
| Room Type | Typical Configuration | Purpose |
| Standard Patient | Single 42–48" | Wheelchair/gurney access |
| ICU/CCU | Double 54" (27" each leaf) | Equipment + multiple staff |
| Isolation | 42–48" + airlock | Infection control |
| Bariatric | 48–60" | Larger patients/equipment |
